Jain Laboratory Glassware Co.

Assemblies

05.601

Distillation Apparatus, ‘RELIGLAS’, Consists of 500 ml Flask, 200 mm. Graham condenser, and stopper.

05.603

Distillation Apparatus, ‘RELIGLAS’, Consists of 2000 ml Flask, Friedrich condenser and stopper.

05.605

Distillation Apparatus, ‘RELIGLAS’, compact, Consists of 1000 ml Erlenmeyer Flask, and Friedrich condenser.

05.607

Distillation Apparatus Ammonia, ‘RELIGLAS’, consists of 500 ml Kjeldahl Flask, splash head and Graham condenser.

05.611

Distillation Assembly, ‘RELIGLAS’consists of R.B. flask, splash head, double surface condenser and receiver adapter.

05.615

Distillation Apparatus, ‘RELIGLAS’, consists of R.B. flask, recovery bend, Liebig condenser and receiver adapter.

Cat. No.Flask Capacity (ml)Condenser effective length (mm)
05.615.05250200
05.615.07500300
05.615.091000350
05.615.112000400

05.617

Kjeldahl Distillation Assembly, RELIGLAS’,consists of Kjeldhal flask 500 ml., multiple adapter two necks, splash head verticle, Liebig condenser, receiver adapter and dropping funnel 100 ml.

05.645

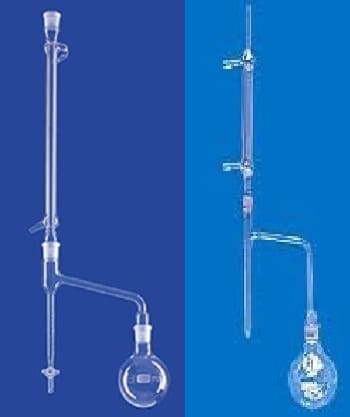

Moisture Determination Unit, ‘RELIGLAS’, (Dean & Stark), comprises of round bottom flask, receiver and leibig condenser.

Cat. No.Type
05.645.012ml Receiver with stopcock, 250ml Flask
05.645.035ml Receiver with stopcock, 500ml Flask
05.645.0510ml Receiver with stopcock, 1000ml Flask
05.645.0625ml Receiver with stopcock, 1000ml Flask
05.645.082ml Receiver without stopcock, 250ml Flask
05.645.095ml Receiver without stopcock, 500ml Flask
05.645.1010ml Receiver without stopcock, 1000ml Flask
05.645.1125ml Receiver without stopcock, 1000ml Flask
05.645.15Spare receiver with stopcock, 2/ 5/ 10/ 25ml
05.645.20Spare receiver without stopcock 2/ 5/ 10/ 25ml

05.647

Essential Oil Determination Unit, ‘RELIGLAS’ (Clevenger Type) Vertical tube combined with condenser and measuring tube with stopcock. A return tube for the aqueous part of the distillate connects the bottom of the measuring tube and the vertical tube.

Cat. No.Flask Capacity (ml)
05.647.011000
05.647.032000
05.647.053000
05.647.075000
05.647.0910000
05.647.1120000

05.649

Clevenger Assembly, ‘RELIGLAS’ for determination of volatile oil lighter than water, comprising of 1000 ml flask, oil separatory tube and condenser.

05.651

Clevenger Assembly, ‘RELIGLAS’ for determination of volatile oil heavier than water, comprising of 1000 ml. flask, oil separatory tube and condenser.

05.655

Macro Kjeldahl Distillation, ‘RELIGLAS’Comprising of 500 ml Kjeldahl flask, multiple adapter, dropping funnel with plug, splash head, condenser and receiver adapter.

05.657.03

05.657 Markham Semi Micro Distillation Unit, ‘RELIGLAS’ , comprising of Markham still body with enclosed evaporator vessel in a combined steam jacket and trap, funnel plug, condenser and conical joint clip.

05.657.03Comprising similar parts but with conical joints

05.659

Micro Kjeldhal Nitrogen Distillation Assembly (Pregal, Parnes and Wagner App.), RELIGLAS, complete with 1 ltr. Steam Flask, Glass Condenser, Vacuum Jacket, Stand & Clamps etc., without burner.
