Jain Laboratory Glassware Co.

Water Distillations

05.671

‘RELIGLAS’ Water Still comprises of a horizontal Borosilicate glass boiler fitted with a 3KW chromium plated immersion heater with thermostat, double coil high efficiency condenser ensure a reliable output of single distillate. The still is fitted on a sheet metal epoxy coated stand, suitable for bench or wall mounting. For use on 220/240 V. 50/60 Hz single phase supply. As per picture. Distillate Output : 4 Liters/hr Approx, pH : 5 to 6.5 Pyrogen free.

05.675

‘RELIGLAS’ WaterStill (U-Tube Heater): These Stills are carefully designed to produce high purity pyrogen free distilled water. The water still comprises of borosilicate glass horizontal type boiler, coil condenser, constant level device, Quartz U-Tube heaters, along with stand and clamps. All parts are replaceable.

pH: 6 to 7 Pyrogen free

Conductivity: 1-2 uS/cm for Single Distilled Water

                         0.8-1 uS/cm for Double Distilled Water.

Cat. No.StageSafety CutoffApprox. OutputWattage
05.675.01SingleNo2 Ltr. / Hr.1.65 KW
05.675.03SingleYes2 Ltr. / Hr.1.65 KW
05.675.05DoubleNo2 Ltr. / Hr.3.3 KW
05.675.07DoubleYes2 Ltr. / Hr.3.3 KW
05.675.09SingleYes4 Ltr. / Hr.3.0 KW
05.675.11DoubleYes4 Ltr. / Hr.6.0 KW

05.681

‘RELIGLAS’ All glass Distillation Unit N.P.L. D esign (Flask type), with heater embedded in spiral glass tube complete with stand, clamps, cord, etc.

Cat. No.Flask Capacity (ml)StageSafety Cutoff
05.681.013 LitreSingle?
05.681.033 LitreSingle?
05.681.055 LitreSingle?
05.681.075 LitreSingle?
05.681.0910 LitreSingle?
05.681.1110 LitreSingle?
05.681.133 LitreDouble?
05.681.153 LitreDouble?
05.681.175 LitreDouble?
05.681.195 LitreDouble?
05.681.2110 LitreDouble?
05.681.2310 LitreDouble?
05.681.253 LitreTriple?
05.681.273 LitreTriple?
05.681.295 LitreTriple?
05.681.315 LitreTriple?
05.681.3310 LitreTriple?
05.681.3510 LitreTriple?



05.683

‘RELIGLAS’ Mono Quartz Distiller (Horizontal) : Designed for reliable continuous operation, easy use, safe to operate. Comprises of Horizontal Quartz Boiler. Borosilicate / Quartz condenser detachable side constant level device, replaceable silica, sheathed heater / heaters, mounted of epoxy coated sheet metal stand, supplied with safety cutoff device, cord & plugs etc. Product : Pyrogen free water, Conductivity : 0.5 – 1.0mS/cm (Quartz Condenser) 1.0–1.5ms/cm (Borosilicate Condenser)

Cat. No.Condenser MaterialApprox. OutputWattage
05.683.01Borosilicate2 ltr./hr.1.65 KW
05.683.03Quartz2 ltr./hr.1.65 KW
05.683.05Borosilicate4 ltr./hr.3.3 KW
05.683.07Quartz4 ltr./hr.3.3 KW

05.685

‘RELIGLAS’ Mono Quartz Distiller (Vertical) : Mono Quartz Distillers are compact. The boiler is made of high purity quartz and the condenser is of Borosilicate / Quartz material. The built in coil type heater provides for minimum loss of heat and production of distilled water starts within 2-3 minutes. The unit is mounted on a sheet metal, epoxy coated stand with electrical connections and easy to assemble.

Distilate conductivity : 0.5-1.0 ?S/cm (Quartz Condenser) 1.0-1.5 ?S/cm (Borosilicate Condenser)

pH : 6-7, Biological activity : Pyrogen Free.

Cat. No.Condenser MaterialApprox. OutputSafety CutoffWattage
05.685.01Borosilicate2 ltr./hr.No2 KW
05.685.03Quartz2 ltr./hr.No2 KW
05.685.05Borosilicate2 ltr./hr.Yes2 KW
05.685.07Quartz2 ltr./hr.Yes2 KW
05.685.09Borosilicate5 ltr./hr.No4 KW
05.685.11Quartz5 ltr./hr.No4 KW
05.685.13Borosilicate5 ltr./hr.Yes4 KW
05.685.15Quartz5 ltr./hr.Yes4 KW

05.691

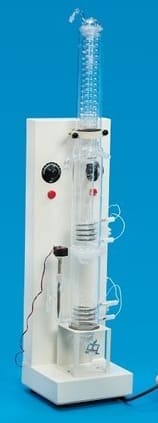

‘RELIGLAS’ All Quartz Double Distillation Unit is made from imported fused quartz tubes. The high chemical purity and low solubility of quartz tubing enables the production of high purity distilled water. The unit comprises of two parts : Lower Boiler with built-in spiral heater, cup shaped joint on top and constant level device. Upper Boiler provided with built-in spiral heater. It also has double walled condensing unit which ensures separate condensation of vapors from both the boilers. This portion also has a ball shaped joint which rests on the cup of the lower boiler. The whole unit is mounted on epoxy coated sheet metal stand with electrical fittings. Supplied complete with safety cut-off device.

Cat. No.Material & StageApprox. OutputWattage
05.691.01All Quartz Double1.5 lt./Hr.3 KW
05.691.03All Quartz Double2.5 lt./Hr.5 KW
“05.691.08Lower Boiler1.5 lt/Hr1.5KW
“05.691.10Lower Boiler2.5 lt/Hr2.5KW
